Special Shape Seal Rings for Precision Industrial Applications

Adapting to Complex Sealing Structures

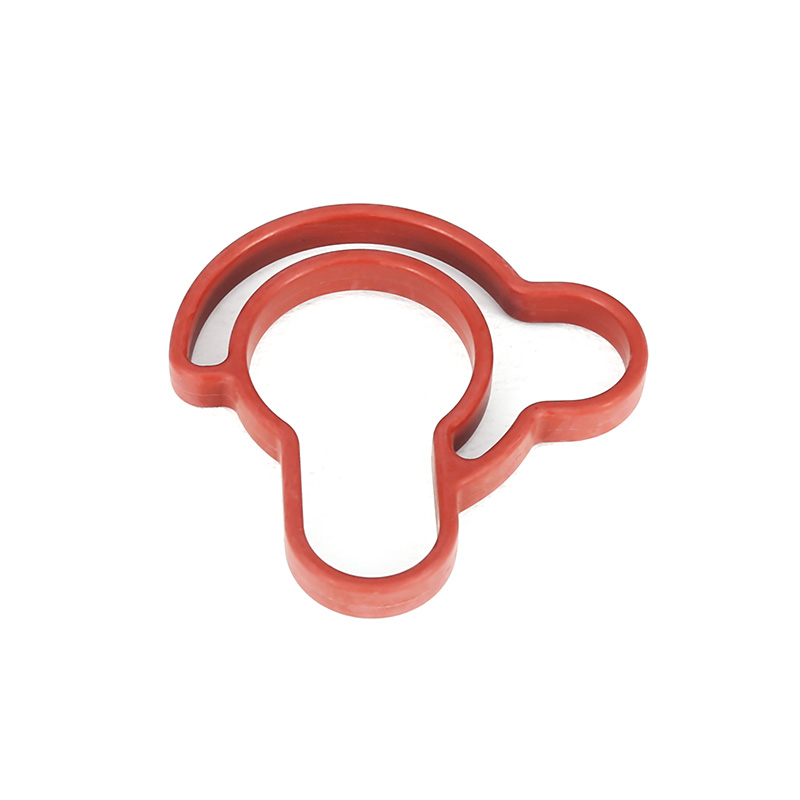

With the continuous advancement of industrial equipment design, sealing systems are required to accommodate increasingly complex geometries. Traditional circular seals are often insufficient for irregular grooves, stepped cavities, or multi-directional sealing interfaces. Special Shape Seal Rings are specifically engineered to meet these non-standard structural requirements while ensuring reliable sealing performance.

In compact assemblies and multifunctional systems, Special Shape Seal Rings provide flexible solutions that integrate seamlessly into limited installation spaces. Their customized geometry enhances compatibility with unique component layouts, improving both assembly efficiency and operational stability.

Structural Profiles and Design Innovation

Special Shape Seal Rings are available in various cross-sectional forms such as rectangular, square, D-shaped, X-shaped, U-shaped, and other asymmetric profiles. Each profile is designed to optimize contact area and compression ratio under specific working conditions.

The advanced profile structure of Special Shape Seal Rings improves load distribution across the sealing surface. This reduces uneven stress and enhances resistance to extrusion or deformation. Compared with conventional O-rings, these engineered shapes offer improved anti-rolling performance and more stable sealing under fluctuating pressure conditions.

Material Performance and Environmental Resistance

Material selection plays a decisive role in sealing reliability. Special Shape Seal Rings can be manufactured from nitrile rubber, fluorocarbon rubber, silicone, EPDM, polyurethane, and other specialized elastomers. Each compound offers specific advantages, including oil resistance, high-temperature stability, chemical compatibility, or weather resistance.

For demanding applications, Special Shape Seal Rings are formulated to maintain elasticity over extended service cycles. Proper compound design ensures minimal compression set and consistent sealing force even under continuous mechanical stress. In environments involving aggressive fluids or temperatures, material durability directly affects long-term performance.

Precision Manufacturing and Dimensional Accuracy

Accurate molding technology is essential to produce Special Shape Seal Rings with consistent cross-sectional dimensions. Compression molding, transfer molding, and injection molding processes are selected according to design complexity and production volume. Mold tooling must be precisely machined to reflect the intended profile geometry.

During production, Special Shape Seal Rings undergo strict inspection procedures including hardness testing, dimensional measurement, and surface evaluation. Advanced testing equipment verifies tolerance control and ensures that each batch meets technical specifications. Controlled curing conditions further enhance structural stability and reduce internal stress variation.

Application Across Diverse Industries

Special Shape Seal Rings are widely used in automotive systems, hydraulic cylinders, pneumatic equipment, industrial valves, aerospace assemblies, and electronic enclosures. Their ability to adapt to non-standard grooves expands engineering design possibilities while maintaining reliable leak prevention.

In dynamic sealing environments involving vibration, rotation, or reciprocating motion, Special Shape Seal Rings maintain balanced contact pressure and reduce frictional wear. Their structural adaptability supports both static and dynamic sealing requirements across multiple industrial sectors.

Custom Engineering and Long Term Reliability

Many industrial projects require tailored sealing solutions based on detailed drawings or performance parameters. Special Shape Seal Rings can be customized in terms of profile geometry, hardness level, material compound, and surface treatment. Prototyping services allow engineers to validate compression behavior and sealing efficiency before mass production.

Through advanced elastomer formulation, precise tooling design, and systematic quality management, Special Shape Seal Rings provide dependable sealing integrity for complex mechanical systems. Their engineered versatility supports long-term operational stability and contributes to enhanced equipment safety and efficiency in modern industrial applications.
