What Materials Are Used In Automotive Water Pump Seals Design

An automotive water pump operates under conditions that place fairly unusual demands on its sealing components. Coolant flows through the pump across varying temperatures, from cold starts through to full operating heat. The shaft rotates at engine speed, creating continuous motion right at the sealing interface. The environment inside the pump ends up combining mechanical stress, thermal cycling, and chemical exposure all at once.

Automotive Water Pump Seals serve a different purpose compared with static seals like gaskets or pipe joints. Static seals only need to maintain a barrier between two stationary surfaces. Water pump seals need to hold sealing integrity while also accommodating rotational motion at the same time. The seal face slides against a mating surface with each revolution of the pump shaft.

Two categories of sealing tend to exist within a water pump. Static seals help prevent leakage between the pump housing and the engine block. Dynamic seals, the mechanical seals wrapped around the rotating shaft, need to seal against pressure while still allowing motion to happen. Both categories share the same operating environment, yet face fairly different mechanical demands from one another.

The balance between sealing effectiveness and wear resistance shapes how water pump seals get designed. A seal that seals well but wears down quickly tends to fail prematurely. One that resists wear but allows minor leakage won't meet performance requirements either. The material selection process needs to work through both requirements together rather than treating them separately.

What Are the Main Components of a Water Pump Seal Assembly

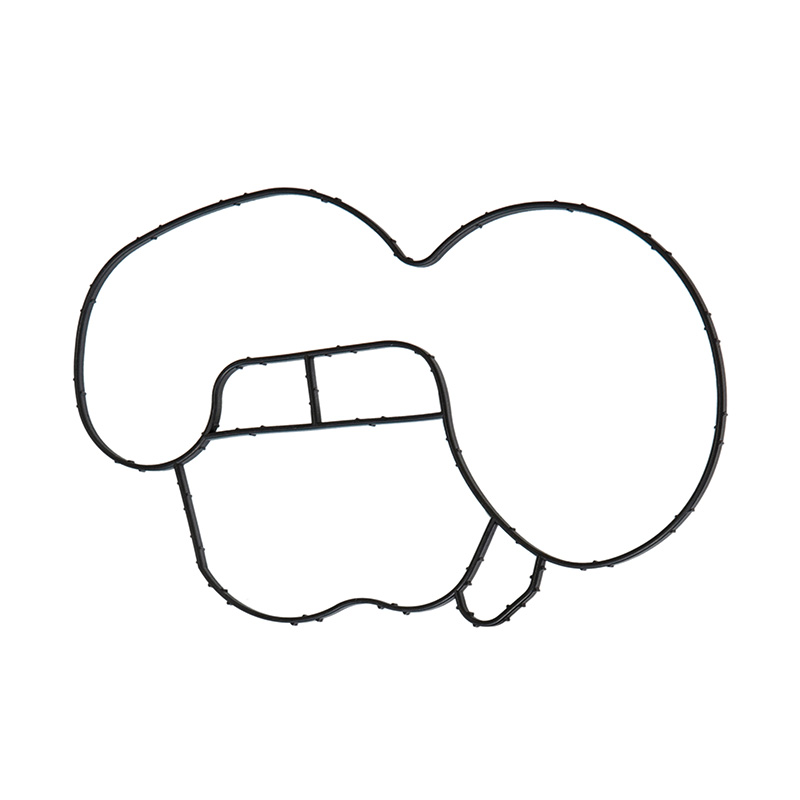

The static seal between the pump housing and engine block typically uses a gasket or O-ring. Components within the water pump seal assembly tend to include:

• The gasket or O-ring material between the pump housing and the engine block
• The mechanical seal components around the rotating shaft — a stationary ring, a rotating ring, and a spring
• The sealing interface where the stationary and rotating rings meet

The two sealing points work alongside each other to prevent coolant from escaping. The static seal keeps coolant from leaking at the housing joint. The dynamic seal helps prevent leakage along the rotating shaft where it exits the housing.

A mechanical seal consists of several parts working together as a system. The stationary ring mounts inside the pump housing and stays put. The rotating ring attaches to the shaft and turns along with it. A spring pushes the rotating ring against the stationary ring, keeping contact pressure steady between the two faces. The sealing faces, where the two rings meet, form the main barrier against coolant leakage.

What Materials Are Used for Static Seals

Gaskets and O-rings for the housing joint tend to rely on materials that hold up against coolant chemistry and maintain sealing force over time. Common material options include elastomers and metal composites. The material needs to stay flexible enough to conform to the housing surfaces while still resisting compression set as it ages.

Coolant resistance stands out as a fairly important requirement for static seal materials. The seal sits in constant contact with coolant, which contains additives that can affect certain materials over time. A material that degrades in coolant will eventually lose its sealing capability and allow leakage through.

Installation ease and service life both play into material selection too. A gasket that requires careful positioning may cost more in assembly time. One that lasts longer helps extend the service interval for the pump overall. The table below runs through common static seal materials and their typical characteristics.

What Materials Are Used for Dynamic Mechanical Seal Faces

The sealing interface between stationary and rotating rings forms the core of the mechanical seal. The materials chosen for these faces shape how well the seal performs and how long it tends to last. Carbon serves as a fairly common material for rotating rings. Silicon carbide and ceramic materials show up frequently in the stationary ring position too.

Carbon offers reasonably good running properties against harder materials like silicon carbide. The carbon wears down gradually while still holding a smooth sealing surface throughout its life. Silicon carbide brings hardness and wear resistance that helps extend seal life further. The pairing of carbon and silicon carbide has held up as a fairly reliable combination across many water pump applications over time.

The sliding face materials need to maintain a liquid film between them as they operate. The coolant itself acts as a lubricant, cutting down friction and wear between the faces. The material combination needs to allow this film to form and stick around under operating conditions.

What Elastomer Materials Are Used in Water Pump Seals

Elastomers play a role in secondary sealing within mechanical seal assemblies. Bellows, boots, and other flexible components need materials that can move along with the shaft while still maintaining a seal against the pump housing. HNBR, hydrogenated nitrile butadiene rubber, turns up fairly often in water pump applications thanks to its coolant resistance and heat stability.

EPDM rubber offers another option worth considering for Automotive Water Pump Seals. The material resists heat, ozone, and many chemicals found in automotive coolants reasonably well. Its properties make it a fit for applications where HNBR may not perform quite as well by comparison.

Other elastomer options exist for special coolant formulations too. The specific coolant chemistry used in an engine often guides which elastomer material makes sense. A material that works fine with traditional green coolant may not perform properly with extended-life coolant formulations instead.

How Do Material Combinations Affect Seal Performance

The interaction between stationary and rotating face materials shapes the overall sealing outcome quite a bit. A combination that works well together tends to produce low wear, fairly stable leakage rates, and a consistent liquid film between the faces. A poorly chosen pair may end up causing rapid wear, seal face damage, or loss of the lubricating film altogether.

The pairing of carbon with silicon carbide tends to stand out in water pump applications. The carbon ring contacts the harder silicon carbide surface, and the carbon wears gradually while the silicon carbide stays fairly stable throughout. The wear debris coming off the carbon gets carried away by the coolant flow without damaging the seal faces in the process.

Ceramic materials also serve as mating surfaces for carbon rings in some designs. The relative hardness of ceramic offers wear resistance somewhat similar to silicon carbide, though the specific performance characteristics tend to differ between the two. The choice between silicon carbide and ceramic often comes down to the coolant chemistry and the operating conditions involved.

Surface finish and flatness play a fairly important role in seal performance too. The sealing faces need to stay flat within a fairly tight tolerance to maintain the liquid film properly. A wavy surface causes the faces to separate and lets leakage through. A rough surface increases friction and speeds up wear over time. Manufacturing processes for the seal faces aim to produce surfaces that stay as flat and smooth as reasonably practical.

The liquid film between the sealing faces serves a few purposes at once. The film lubricates the sliding contact, cutting down friction and wear along the way. It also carries heat away from the sealing interface as it circulates. A film that's too thin may not provide adequate lubrication. One that's too thick may allow more leakage than expected. The material combination and face design need to balance these competing requirements against each other.

Why Does Coolant Compatibility Drive Material Selection

Coolant chemistry interacts with seal materials in ways that shape long-term seal performance. The coolant itself contains additives that help protect the engine from corrosion, cavitation, and freezing. Some of these additives can affect seal materials, causing swelling, hardening, or surface deposits over time.

The coolant acts as a lubricant for the seal faces, so the material combination needs to work reasonably well with the coolant chosen. A material pair that performs fine with one coolant formulation may run into problems with another. The seal designer needs to understand the intended coolant chemistry and how compatible the materials are with that particular formulation.

Surface films can build up on seal faces over time. These films may come from coolant additives reacting with the seal material, or they may build up from wear debris accumulating on the face itself. A film that forms fairly evenly can actually help sealing by filling in microscopic surface irregularities. A film that forms unevenly can cause leakage or speed up wear instead.

Material selection needs to factor in more than just coolant composition too — operating temperature matters here as well. Higher temperatures tend to speed up chemical reactions and increase the rate of material degradation. A seal that works fine at moderate temperatures may wear noticeably faster at elevated temperatures.

How Does a Water Pump Seal Supplier Support Material Selection

A Water Pump Seal Supplier that understands the material selection process can help guide customers toward suitable choices. The supplier's experience across different coolant formulations, operating conditions, and engine designs gives them a foundation for making useful recommendations.

Testing capabilities let a Pump Seal Supplier verify how material combinations perform under relevant conditions. Wear testing, leakage testing, and environmental exposure testing help confirm that the chosen materials meet the requirements of the application at hand. A Pump Seal Supplier that offers testing support tends to reduce the risk of material selection mistakes down the line.

Customization support from a Supplier helps when standard material options don't quite fit the application. Adjustments to face materials, elastomer compounds, or seal geometry can address fairly specific requirements. A supplier's willingness to customize often reflects their experience with the materials and processes involved.

Quality assurance and material certification give buyers some confidence that the supplied parts meet the specified requirements. A Water Pump Seal Supplier that maintains a quality management system and provides material certifications supports traceability and compliance throughout the process.

Reliability and durability matter quite a bit when it comes to water pump seal selection. Seals that fail prematurely can result in coolant leaks, engine damage, and customer complaints down the line. Using suitable materials for the intended application helps avoid these outcomes. Material selection, backed by supplier expertise and testing, gives the seal a reasonably good chance of reaching its design life. What seal design generally aims for is keeping coolant contained within the pump and preventing leaks that would damage the engine. Meeting that aim requires attention to materials at every point in the seal assembly. The choices made by the seal designer and the supplier tend to shape how well the seal performs under real-world driving conditions.
